Of course! Let's dive into xlwings and Python for Excel. It's a fantastic library that allows you to automate Excel tasks, read and write data, and even build custom User-Defined Functions (UDFs) directly in Python.

Here’s a comprehensive guide covering everything from installation to practical examples.

What is xlwings?

xlwings is an open-source Python library that makes it easy to control Excel from Python. Think of it as a powerful bridge between your Python scripts and the Excel application.

Key Features:

• Easy to Use: The syntax is intuitive and very similar to how you would reference cells and ranges in Excel itself (e.g., sheet['A1']).
• Read/Write Data: Seamlessly read values from and write data to any Excel range.
• Macros & Automation: Automate repetitive tasks like formatting, creating charts, and running calculations.
• User-Defined Functions (UDFs): Write complex functions in Python and use them directly in your Excel spreadsheet cells, just like native Excel functions.
• Pandas Integration: Easily read a pandas DataFrame into an Excel sheet or pull data from Excel into a DataFrame.
• Cross-Platform: Works on Windows, macOS, and Linux (though Linux requires a separate headless Excel server).

Installation

First, you need to install xlwings. It's highly recommended to do this in a dedicated Python environment.

# Create and activate a virtual environment (optional but good practice)
python -m venv xlwings_env
# On Windows:
xlwings_env\Scripts\activate
# On macOS/Linux:
source xlwings_env/bin/activate
# Install xlwings
pip install xlwings

The Two Main Use Cases

There are two primary ways to use xlwings:

1. Scripting: Run a Python script from your terminal (or an IDE like VS Code) that controls an existing or new Excel instance. This is great for data analysis, reporting, and automation.
2. User-Defined Functions (UDFs): Write a Python function that can be called directly from an Excel worksheet cell. This is perfect for complex calculations that are difficult or slow to implement in VBA.

We'll cover both.

Use Case 1: Scripting - Controlling Excel from a Python Script

This is the most common use case for automation.

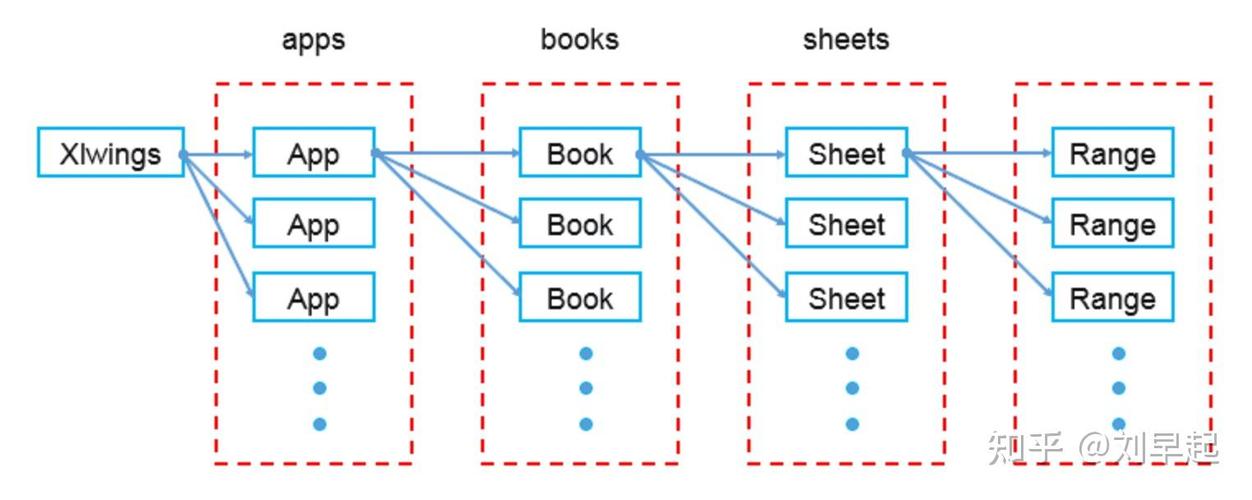

Basic Workflow:

1. Import xlwings: import xlwings as xw
2. Connect to Excel:
   • xw.App(visible=True): Creates a new, visible Excel application.
   • xw.App(visible=False): Creates a new, hidden Excel application (good for background tasks).
   • xw.apps.active(): Connects to an already running Excel application.
3. Get a Workbook: wb = app.books['MyWorkbook.xlsx'] or wb = app.books.add() to create a new one.
4. Get a Worksheet: sht = wb.sheets['Sheet1']
5. Read/Write Data: Use sht.range('A1').value or sht.range('A1:B10').value.
6. Save and Quit: wb.save(), app.quit().

Practical Scripting Examples

Let's create a Python script named automation.py.

Example 1: Basic Read and Write

This script will create a new Excel file, write some data, read it back, and add a formula.

# automation.py
import xlwings as xw
# 1. Create a new Excel application and make it visible
app = xw.App(visible=True)
# 2. Create a new workbook in that application
wb = app.books.add()
# 3. Select the first sheet in the workbook
sht = wb.sheets[0]
# 4. Write data to specific cells
sht.range('A1').value = 'Product'
sht.range('B1').value = 'Price'
sht.range('A2').value = 'Apple'
sht.range('B2').value = 1.50
sht.range('A3').value = 'Banana'
sht.range('B3').value = 0.75
# 5. Write a formula to a cell
sht.range('B4').formula = '=SUM(B2:B3)'
# 6. Add a chart
chart = sht.charts.add()
chart.set_source_data(sht.range('A1:B3'))
chart.chart_type = 'column_clustered'
# 7. Save the workbook and close it
wb.save('sales_report.xlsx')
print("Workbook 'sales_report.xlsx' created successfully.")
# 8. Quit the Excel application
app.quit()

To run this:

1. Make sure you have Excel installed.
2. Save the code as automation.py.
3. Run it from your terminal: python automation.py.
4. A new Excel window will appear, perform the actions, and save the file.

Example 2: Working with Pandas DataFrames

This is a killer feature. You can easily push a DataFrame to Excel and pull data from Excel into a DataFrame.

# pandas_example.py
import xlwings as xw
import pandas as pd
# Sample data
data = {
    'Date': ['2025-01-01', '2025-01-02', '2025-01-03'],
    'Sales': [500, 650, 800],
    'Expenses': [150, 200, 250]
}
df = pd.DataFrame(data)
# Connect to an existing workbook or create a new one
app = xw.App(visible=True)
wb = app.books.add()
sht = wb.sheets[0]
# Write the entire DataFrame to Excel, starting at cell A1
# The `index=False` prevents pandas from writing the DataFrame index
sht.range('A1').value = df
# Now, let's read data from Excel back into a DataFrame
# We assume the user has added some data in columns D and E
# For example, they typed 'Q1' in D2 and '2500' in E2
# Read a single cell
quarter = sht.range('D2').value
print(f"Quarter from Excel: {quarter}")
# Read a range into a DataFrame
new_data = sht.range('D1:E5').options(pd.DataFrame, header=1, index=False).value
print("\nData read from Excel into a new DataFrame:")
print(new_data)
# Save and close
wb.save('data_with_pandas.xlsx')
app.quit()

Note on .options(): The .options() method is crucial for converting data between Excel ranges and Python objects like DataFrames. header=1 tells xlwings to use the first row of the range as the DataFrame header.

Use Case 2: User-Defined Functions (UDFs)

This allows you to use Python functions directly in your Excel sheet.

Setup for UDFs:

1. Install xlwings (as before).
2. Create an Excel Add-in: This is the standard way to distribute UDFs.
   • Run this command in your terminal: xlwings addin install
   • This will create an xlwings.xlam file in your Excel Add-ins folder and install it. You'll need to enable it in Excel (File > Options > Add-ins).
3. Write your Python UDF: Create a Python file (e.g., my_functions.py) in a folder. xlwings will automatically look for UDFs in any .py file in your default project directory (you can configure this in the xlwings add-in settings).

Example 3: Creating a Python UDF

Let's create a custom function to get the Fibonacci sequence.

1. Create a file named udf_example.py in your project folder.
2. Add the following code:

# udf_example.py
import xlwings as xw
# This decorator tells xlwings that this is a User-Defined Function
@xw.func
def fibonacci(n):
    """
    Calculates the nth Fibonacci number.
    Can be called directly from Excel as =fibonacci(A1)
    """
    if n <= 0:
        return "Input must be a positive integer"
    elif 1 <= n <= 2:
        return 1
    else:
        a, b = 1, 1
        for _ in range(3, n + 1):
            a, b = b, a + b
        return b

3. Use the UDF in Excel:
   • Open Excel.
   • Go to the xlwings tab in the ribbon.
   • Click Import Python UDFs. This will import the fibonacci function from your udf_example.py file.
   • Now you can use it just like any other Excel function! In a cell, type =fibonacci(10) and press Enter. It should return 55.

xlwings vs. open
