Of course! Using Python with Abaqus is one of the most powerful ways to automate and extend your finite element analysis workflows. The term "bat" refers to a batch file (.bat), which is a script for Windows Command Prompt. The goal is to run an Abaqus simulation non-interactively (i.e., without opening the GUI) using a Python script.

Here’s a comprehensive guide covering everything from the basics to advanced techniques.

The Core Concept: abaqus python

The fundamental command to run a Python script within the Abaqus environment is:

abaqus python my_script.py

This command does the following:

1. It launches the Abaqus Python interpreter.
2. It executes the commands inside my_script.py.
3. It exits the interpreter when the script is finished.

This is perfect for automation. You can run this command from a Windows batch file (.bat), a Linux shell script (.sh), or directly from the command line.

The Essential Abaqus Python Modules

Your Python script will need to import specific Abaqus modules to interact with the software. The most important ones are:

• caeModules: Contains modules for creating and modifying parts, materials, steps, loads, etc. (e.g., part, material, load).
• odbAccess: Contains modules for reading and writing output database (.odb) files. This is crucial for post-processing.
• job: Contains the Job object, which is used to submit and manage analysis jobs.
• session: Used to manage the current Abaqus/CAE session (e.g., to open models, viewports).
• standardScripts: Contains utility scripts, including the jobData object which is often used to get job information.

Step-by-Step Example: A Complete Batch Process

Let's create a full workflow that:

1. Creates a simple model (a cantilever beam).
2. Submits the job for analysis.
3. Reads the results from the .odb file after the job is complete.
4. (Optional) Plots the results.

File Structure:

my_abaqus_project/
├── run_simulation.bat
├── create_model.py
└── post_process.py

Step 1: The Python Script (create_model.py)

This script will build the entire model and submit the job. It's self-contained.

# create_model.py
import sys
import os
importabaqus
from abaqus import *
from abaqusConstants import *
from caModules import *
from job import Job
# --- 1. Model and Part Creation ---
# Create a new model database
mdb.Model(name='BeamModel', modelType=STANDARD_EXPLICIT)
# Create a 3D deformable part
s = mdb.models['BeamModel']
p = s.Part(name='BeamPart', dimensionality=THREE_D, type=DEFORMABLE_BODY)
p.BaseSolidExtrude(sketch=p.ConstrainedSketch(name='beam_sketch', sheetSize=10),
                   depth=1.0)
# --- 2. Material and Section ---
# Define a material
s.Material(name='Steel')
s.materials['Steel'].Elastic(table=((200e3, 0.3),))
# Create a solid section and assign it to the part
s.HomogeneousSolidMaterial(name='SteelSection', material='Steel')
p.SectionAssignment(region=p.sets['whole part'], sectionName='SteelSection')
# --- 3. Assembly and Step ---
# Instance the part in the assembly
a = s.rootAssembly
a.Instance(name='BeamInstance', part=p, dependent=ON)
# Create a static, general step
s.Step(name='LoadStep', previous='Initial', procedure='Static, General')
# --- 4. Loads and Boundary Conditions ---
# Create a set for the fixed end
a.Set(name='FixedEnd', vertices=a.vertices.findAt(((-5, 0, 0),)))
# Apply a boundary condition (fixed)
s.BoundaryCondition(name='FixedBC', createStepName='LoadStep',
                    region=a.sets['FixedEnd'],
                    u1=SET, u2=SET, u3=SET, ur1=SET, ur2=SET, ur3=SET)
# Create a set for the loaded end
a.Set(name='LoadedEnd', vertices=a.vertices.findAt(((5, 0, 0),)))
# Apply a concentrated force
s.ConcentratedForce(name='PointLoad', createStepName='LoadStep',
                    region=a.sets['LoadedEnd'],
                    cf2=-1000.0) # Force in the Y-direction
# --- 5. Meshing ---
# Assign a mesh control
p.seedPart(size=0.5)
p.generateMesh()
# --- 6. Job Creation and Submission ---
# Create the job
j = mdb.Job(name='BeamJob', model='BeamModel', description='Cantilever beam analysis')
# Submit the job to run
j.submit()
# Wait for the job to complete (optional, but useful for batch scripts)
j.waitForCompletion()
print("Model created and job submitted successfully.")

Step 2: The Batch File (run_simulation.bat)

This is the script you will execute. It runs the Python script using Abaqus.

@echo off
echo ===================================================
echo Starting Abaqus Batch Simulation...
echo ===================================================
REM Define the path to your Abaqus script
set SCRIPT_PATH=create_model.py
REM Check if the script file exists
if not exist "%SCRIPT_PATH%" (
    echo ERROR: Script file not found at %SCRIPT_PATH%
    pause
    exit /b 1
)
REM Run the Abaqus Python script
abaqus python "%SCRIPT_PATH%"
echo.
echo ===================================================
echo Abaqus Python script execution finished.
echo ===================================================
pause

How to Run It:

1. Save the three files (run_simulation.bat, create_model.py) in the same directory.
2. Open a Command Prompt.
3. Navigate to that directory: cd path\to\my_abaqus_project
4. Run the batch file: run_simulation.bat

You will see the Abaqus command-line interface appear, execute the Python commands, and then close. After it finishes, you will have a BeamModel.cae and BeamJob.odb file in the directory.

Advanced Techniques

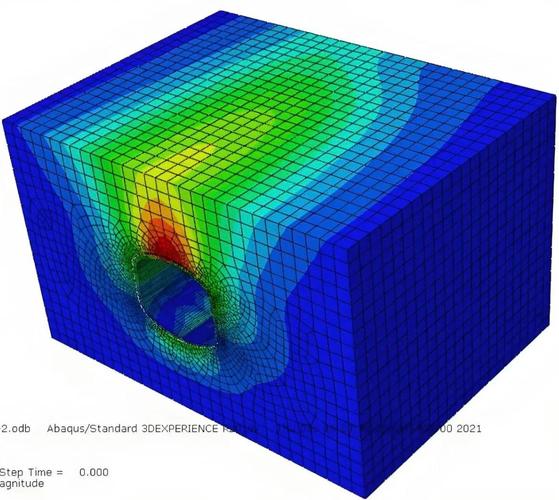

A. Reading ODB Files for Post-Processing

You often want to extract data from the output database after the simulation is complete. Here's how you can do that in a separate script (post_process.py).

# post_process.py
import sys
import os
from odbAccess import *
# Path to the output database file
odb_path = 'BeamJob.odb'
try:
    # Open the ODB file
    odb = openOdb(path=odb_path)
    print(f"Successfully opened ODB file: {odb_path}")
    # Get the last step in the analysis
    last_step = odb.steps['LoadStep']
    print(f"Found step: {last_step.name}")
    # Get the field output for 'U' (displacement) at the last frame
    field_outputs = last_step.fields
    disp_output = field_outputs['U']
    last_frame = disp_output.frames[-1]
    print(f"Processing frame at time: {last_frame.frameValue}")
    # Get the displacement data for all nodes
    # The 'instance' name is what you defined in the model
    disp_data = disp_output.getSubset(region=odb.rootAssembly.instances['BeamInstance'])
    # Print the maximum displacement magnitude
    max_disp = 0.0
    for value in disp_data.data:
        disp_magnitude = (value[0]**2 + value[1]**2 + value[2]**2)**0.5
        if disp_magnitude > max_disp:
            max_disp = disp_magnitude
    print(f"\n--- Post-Processing Results ---")
    print(f"Maximum displacement magnitude: {max_disp:.4f} units")
    # Close the ODB file
    odb.close()
except Exception as e:
    print(f"An error occurred: {e}")
    print("Make sure the job has completed successfully and the .odb file exists.")

You can run this post-processing script from the same batch file after the first script finishes.

B. Using Command-Line Arguments

You can make your scripts more flexible by passing arguments from the batch file.

Modified run_simulation.bat:

@echo off
echo Starting Abaqus Batch Simulation...
REM Get the model name from the first argument
set MODEL_NAME=%1
if "%MODEL_NAME%"=="" (
    echo ERROR: No model name provided.
    echo Usage: run_simulation.bat <model_name>
    pause
    exit /b 1
)
set SCRIPT_PATH=create_model.py
abaqus python "%SCRIPT_PATH%" --model-name "%MODEL_NAME%"
echo.
echo Abaqus Python script execution finished.
pause

Modified create_model.py (to accept arguments):

# create_model.py
import sys
import os
import abaqus
# ... (other imports)
# Check for command-line arguments
if len(sys.argv) > 1 and sys.argv[1] == '--model-name':
    if len(sys.argv) > 2:
        model_name = sys.argv[2]
        job_name = f"{model_name}Job"
    else:
        print("Error: --model-name argument provided without a value.")
        sys.exit(1)
else:
    # Default values if no arguments are passed
    model_name = 'BeamModel'
    job_name = 'BeamJob'
# Use the variable names in the script
mdb.Model(name=model_name, modelType=STANDARD_EXPLICIT)
# ...
j = mdb.Job(name=job_name, model=model_name)
# ...

How to Run It: run_simulation.bat MyBeam

This will create a model named MyBeam and a job named MyBeamJob.

C. Capturing Output and Errors

For robust batch processing, you should capture the standard output and standard error streams.

Modified run_simulation.bat:

@echo off
echo ===================================================
echo Starting Abaqus Batch Simulation...
echo ===================================================
set SCRIPT_PATH=create_model.py
set LOG_FILE=abaqus_simulation.log
set ERR_FILE=abaqus_simulation.err
REM Run the script and redirect output
abaqus python "%SCRIPT_PATH%" > "%LOG_FILE%" 2> "%ERR_FILE%"
REM Check the error level to see if abaqus/python failed
if %ERRORLEVEL% NEQ 0 (
    echo.
    echo ===================================================
    echo AN ERROR OCCURRED! Check the error log:
    echo type "%ERR_FILE%"
    echo ===================================================
) else (
    echo.
    echo ===================================================
    echo Simulation completed successfully.
    echo Output log available at: "%LOG_FILE%"
    echo ===================================================
)
pause

This will create abaqus_simulation.log with normal print statements and abaqus_simulation.err with any errors, making debugging much easier.

Summary and Best Practices

Best Practices:

1. Keep Scripts Modular: Separate model creation, job submission, and post-processing into different scripts. It's easier to debug and maintain.
2. Use try...except Blocks: Wrap file operations and ODB access in try...except blocks to handle errors gracefully.
3. Log Everything: Redirect output and error streams to log files. This is non-negotiable for serious automation.
4. Use Relative Paths: Design your scripts to work from any directory by using paths relative to the script's location (os.path.dirname(os.path.abspath(__file__))).
5. Check ERRORLEVEL: In your batch files, always check %ERRORLEVEL% to determine if the Abaqus command succeeded before proceeding to the next step.
