Of course! Using Python with Open CASCADE is a powerful combination for creating 3D modeling and CAD applications. Here’s a comprehensive guide covering the key concepts, popular libraries, installation, and a step-by-step example.

What is Open CASCADE?

Open CASCADE Technology (OCCT) is a powerful, open-source C++ software development platform for 3D CAD, CAM, CAE, and Visualization. It provides a complete suite of tools for:

• 3D Geometry: Creating and manipulating curves, surfaces, and solids (BRep - Boundary Representation).
• Modeling: Boolean operations (fusion, cut, common), filleting, shelling, etc.

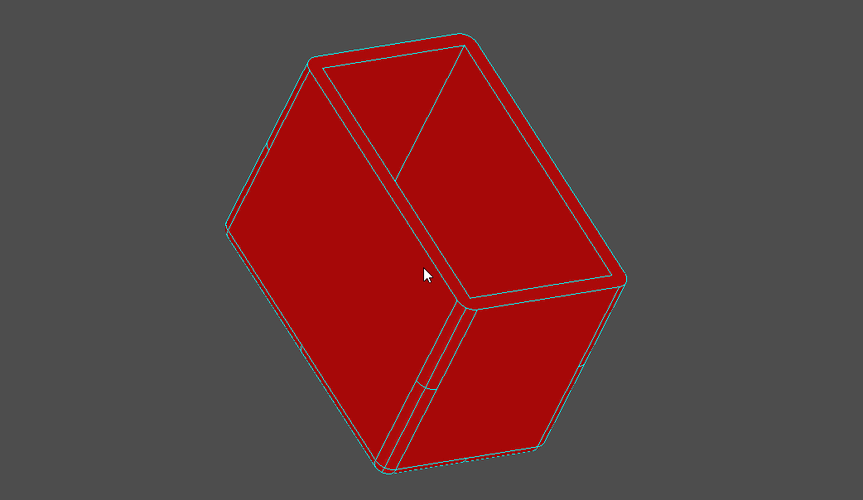

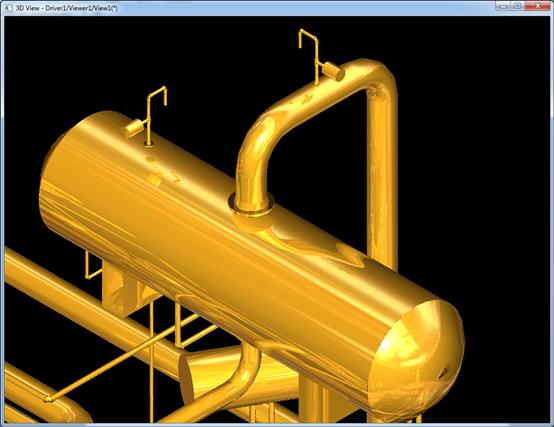

• Visualization: Rendering 3D models.
• Data Exchange: Reading and writing standard CAD file formats (STEP, IGES, STL, etc.).

The challenge is that it's a C++ library. To use it from Python, we need a "wrapper" or a "binding."

Key Libraries for Python + Open CASCADE

There are two main approaches to use Open CASCADE from Python:

pythonocc-core (The De-facto Standard)

This is the most popular and mature library. It's a Python wrapper generated using the pyside2-tools (pyside2-uic and pyside2-rcc) and the shiboken2 binding generator. It provides a direct, 1-to-1 mapping of the OCCT C++ API to Python.

• Pros:
  • Mature and Stable: Has been around for a long time and is widely used.
  • Comprehensive: Wraps a large portion of the OCCT kernel.
  • Direct Mapping: If you know the C++ OCCT API, the Python version is very easy to learn.
• Cons:
  • Steep Learning Curve: The API is very C++-like, which can be verbose and not very "Pythonic."
  • Manual Installation: The installation process can be tricky as it requires pre-compiled binaries or building from source, which needs a C++ compiler.

cadquery (A Higher-Level, Pythonic API)

CadQuery is a 3D scripting library for Python built on top of pythonocc-core. It provides a fluent, chainable, and more "Pythonic" API for creating 3D models. It's inspired by jQuery.

• Pros:
  • Easy to Learn: The API is intuitive and much easier to get started with than raw OCCT.
  • "Pythonic": Uses method chaining and other Python idioms effectively.
  • Great for Parametric Design: Excellent for creating models programmatically with parameters.
• Cons:
  • Abstraction Layer: You are not working directly with OCCT. If you need a very specific, low-level OCCT feature that isn't exposed by CadQuery, you can't use it easily (though you can access the underlying pythonocc-core objects if needed).
  • Subset of Features: It doesn't expose the entire power of the OCCT kernel.

Installation

The easiest way to install these libraries is using conda, as it handles the complex binary dependencies for you.

Option A: Using Conda (Recommended)

This is the most straightforward method.

# Create a new conda environment (optional but good practice)
conda create -n pythonocc python=3.10
# Activate the environment
conda activate pythonocc
# Install pythonocc-core and its GUI dependencies
conda install -c conda-forge pythonocc-core
conda install -c conda-forge pythonocc-systems  # For visualization
conda install -c conda-forge pythonocc-occ  # A newer, more complete package

For CadQuery:

conda install -c conda-forge cadquery

Option B: Using Pip (Can be tricky)

Pip installation relies on pre-compiled wheels, which may not be available for your platform or Python version. If they are, it's simple:

pip install pythonocc-core
pip install cadquery

If pip fails, you will likely need to build from source, which requires a C++ compiler (like MSVC on Windows or GCC on Linux) and CMake. This is an advanced topic and is not recommended for beginners.

A Simple Example with pythonocc-core

This script creates a simple box, cuts a hole in it, and displays it in a 3D viewer.

# 1. Import necessary modules from pythonocc-core
from OCC.Core import BRepPrimAPI_MakeBox, BRepPrimAPI_MakeCylinder, gp_Ax2, gp_Pnt
from OCC.Core import BRepAlgoAPI_Fuse, BRepAlgoAPI_Cut
from OCC.Display.SimpleGui import init_display
# 2. Create 3D Shapes (Primitives)
# Create a box with dimensions 100x50x30
# The box is created with its corner at (0,0,0)
box_shape = BRepPrimAPI_MakeBox(100, 50, 30).Shape()
# Create a cylinder to be used as the cutting tool
# It has a radius of 15 and a height of 60.
# Position it at (50, 25, 15) so it's centered on the box face.
cylinder_axis = gp_Ax2(gp_Pnt(50, 25, 15), gp_Dir(0, 0, 1))
cylinder_shape = BRepPrimAPI_MakeCylinder(cylinder_axis, 15, 60).Shape()
# 3. Perform a Boolean Operation
# Cut the cylinder from the box
# The result is a new shape
final_shape = BRepAlgoAPI_Cut(box_shape, cylinder_shape).Shape()
# 4. Display the result
# This creates a simple GUI window to show the 3D model
display, start_display, add_menu, add_function_to_menu = init_display()
display.DisplayShape(final_shape, update=True)
start_display()

To run this, save it as box_with_hole.py and execute it from your terminal: python box_with_hole.py

You should see a window appear with the 3D model. You can use your mouse to rotate, pan, and zoom.

A Simple Example with cadquery

As you can see, the raw pythonocc-core code is quite verbose. CadQuery makes this much cleaner.

# 1. Import CadQuery
import cadquery as cq
# 2. Create the model using a fluent API
# The 'result' variable holds the final 3D shape
result = (
    cq.Workplane("XY")
    .box(100, 50, 30)  # Create a box
    .faces(">Z")       # Select the top face
    .workplane(center=(50, 25)) # Center the workplane on that face
    .circle(15)        # Draw a circle
    .cutThruAll()      # Extrude the circle to cut through the entire box
)
# 3. Display the result
# CadQuery uses the same viewer as pythonocc-core
show_object(result)

To run this, save it as cq_box_with_hole.py and execute: python cq_box_with_hole.py

The result is identical, but the code is far more readable and easier to write, especially for complex, parametric models.

Comparison: pythonocc-core vs. cadquery

Which One Should You Choose?

• Choose cadquery if:

  • You are new to 3D modeling APIs.
  • Your primary goal is to create 3D models programmatically in a clean, readable way.
  • You are building a custom design tool or generating parts based on parameters.

• Choose pythonocc-core if:

  • You need to perform a specific, complex operation that is not easily expressed in CadQuery's high-level API.
  • You are working directly with CAD file formats and need fine-grained control over the geometry.
  • You are extending or building a new CAD application from the ground up and need the full power of the OCCT kernel.

Important Concepts to Understand

When working with Open CASCADE (either directly or via a wrapper), you'll encounter these key terms:

• TopoDS_Shape: This is the base class for all geometric shapes in OCCT. It's a "smart pointer" that contains the actual geometric and topological data. Common subclasses are TopoDS_Solid, TopoDS_Face, TopoDS_Edge, and TopoDS_Vertex.
• BRep (Boundary Representation): This is how OCCT stores 3D models. A shape is defined by its boundaries: vertices, edges, and faces. This is different from mesh-based modeling (like in 3D printing software).
• Geometry vs. Topology:
  • Geometry: The actual mathematical description (e.g., a line, a circle, a sphere, a NURBS surface).
  • Topology: The connectivity of the shape's components (e.g., this edge connects vertex A to vertex B, this face is bounded by these edges).
• gp (geometric processor): This is the package for simple, non-parametric geometric primitives like points (gp_Pnt), vectors (gp_Vec), axes (gp_Ax2), and directions (gp_Dir). You use these to define locations and orientations for more complex shapes.
