Of course! Setting up Caffe on Windows with Python is a classic, challenging, but very rewarding task. The "official" way is notoriously difficult on Windows, but the community has developed a much more streamlined method using Docker.

I will guide you through the two primary methods:

1. The Recommended & Easiest Way: Using Docker (Highly recommended for most users)
2. The "From Source" Way: Native Windows Installation (For advanced users who need specific GPU support or want to compile from scratch)

Method 1: The Recommended & Easiest Way - Using Docker

This approach uses a pre-built Docker container that has Caffe, all its dependencies (like CUDA, cuDNN, Python), and the necessary libraries already compiled and configured. You avoid all the complex installation and compilation headaches.

Why use Docker?

• Isolation: No conflicts with your existing Python or system libraries.
• Simplicity: The environment is ready to go in minutes.
• Reproducibility: You can be sure your environment matches someone else's exactly.
• GPU Support: It's much easier to get GPU access working.

Prerequisites:

1. Windows 10/11 Pro, Enterprise, or Education: You need the Hyper-V virtualization platform enabled. (Windows 11 Home users can use WSL 2, which is even easier, but the steps below are for standard Docker Desktop).
2. Install Docker Desktop for Windows:
   • Download it from the official website: https://www.docker.com/products/docker-desktop/
   • Run the installer. It will enable Hyper-V and restart your computer. Follow the on-screen prompts.
   • After installation, launch Docker Desktop. It may take a few minutes to initialize.

Step-by-Step Docker Guide:

1. Pull the Caffe Docker Image: Open PowerShell or Command Prompt as an Administrator and run the following command. This will download a pre-built image with Caffe and GPU support.

   docker pull bvlc/caffe:gpu

   Note: If you don't have an NVIDIA GPU, you can use bvlc/caffe:cpu instead, but GPU is the main reason to use Caffe.


   （图片来源网络，侵删）

2. Verify GPU Access (Optional but Recommended): Before running the container, let's make sure Docker can see your NVIDIA GPU. Run:

   nvidia-container-cli list

   If it lists your GPU(s), you're all set. If not, you may need to install or update your NVIDIA drivers and restart Docker Desktop.

3. Run the Caffe Container: This command starts the container and gives you a command prompt inside it. We'll mount your current directory so you can easily access your Python scripts and models.

   docker run -it --rm --name my-caffe -v "%cd%:/workspace" bvlc/caffe:gpu bash

   • -it: Runs the container in interactive mode.
   • --rm: Automatically removes the container when you exit.
   • --name my-caffe: Gives the container a friendly name.
   • -v "%cd%:/workspace": This is the key part. It maps your current Windows directory (%cd%) to the /workspace directory inside the container. This lets you work on your host machine while the tools run inside the container.
   • bvlc/caffe:gpu: The image we're using.
   • bash: The command to run inside the container (start a bash shell).

4. You're Inside the Caffe Environment! You should now see a command prompt that looks something like this: root@<container-id>:/workspace#. From here, everything is set up.


   （图片来源网络，侵删）

   • Run a Python script: Let's say you have a Python script my_script.py in your Windows folder. You can run it from inside the container like this:

     python /workspace/my_script.py

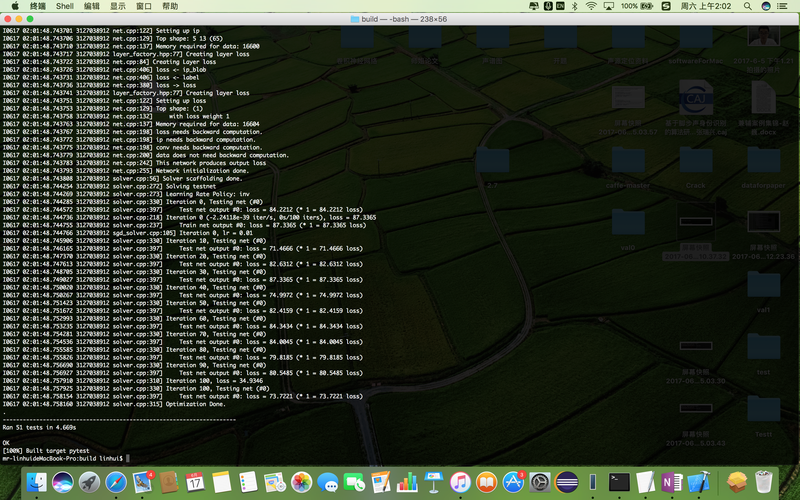

   • Run the Caffe test command: To verify everything is working, you can run Caffe's built-in tests.

     # Run a quick test
     /usr/local/caffe/build/tools/caffe test --model=examples/mnist/lenet.prototxt --weights=examples/mnist/lenet_iter_10000.caffemodel
     # Or run the full test suite (this will take a while)
     /usr/local/caffe/build/tools/caffe time --model=examples/mnist/lenet.prototxt

     If these run without errors, your Caffe + GPU environment is perfectly configured.

5. Exit the Container: Simply type exit and press Enter. The container will stop and be removed (because of --rm).

Method 2: The "From Source" Way - Native Windows Installation

This is the "hard way." It involves compiling Caffe from its source code on Windows. It is complex, prone to errors, and generally not recommended unless you have a specific reason (e.g., contributing to the Caffe codebase or needing a very specific build configuration).

Prerequisites:

• Visual Studio 2025 or 2025: You need the "Desktop development with C++" workload installed.
• NVIDIA GPU Drivers: Install the latest drivers from NVIDIA's website, which include CUDA Toolkit and cuDNN. Do not install the full CUDA Toolkit from the NVIDIA website during this process. The driver bundle is sufficient and easier to manage.
• Git: To download the Caffe source code.
• CMake: A build system generator.
• Python and Anaconda: It's highly recommended to use Anaconda to create a dedicated Python environment to avoid conflicts.

Step-by-Step Native Guide:

1. Set Up Your Environment Variables:

   • Right-click on "This PC" -> Properties -> Advanced system settings -> Environment Variables.
   • Under "System variables," create or edit the following:
     • CUDA_PATH: Set this to the path where your CUDA is installed (e.g., C:\Program Files\NVIDIA GPU Computing Toolkit\CUDA\v11.8).
     • CUDA_PATH_V11_8 (or your version): Set this to the same path as CUDA_PATH.
     • PATH: Add %CUDA_PATH%\bin and %CUDA_PATH%\libnvvp to the end of the existing Path variable.
     • PYTHON: Set this to the path of your Python executable (e.g., C:\Users\YourUser\Anaconda3\python.exe).
     • ANACONDA: Set this to the root of your Anaconda installation (e.g., C:\Users\YourUser\Anaconda3).

2. Create a Python Environment with Anaconda: Open Anaconda Prompt and create a new environment with Python 3.8 (a stable version for Caffe).

   conda create -n caffe_env python=3.8
   conda activate caffe_env

3. Install Python Dependencies:

   # Install core dependencies
   pip install numpy scipy h5py pyyaml pillow protobuf
   # Install Caffe-specific Python requirements
   pip install scikit-image opencv-python

   You may also need to install matplotlib if you plan on using it.

4. Download Caffe Source Code:

   git clone https://github.com/BVLC/caffe.git
   cd caffe

5. Configure CMake: This is the most critical step. Run CMake GUI (cmake-gui.exe).

   • "Where is the source code:": Browse to your caffe folder.
   • "Where to build the binaries:": Create a new folder inside caffe, e.g., caffe\build.
   • Click "Configure". It will detect your Visual Studio. Select your version (e.g., Visual Studio 17 2025) and the x64 architecture.
   • After the first configure, you will see a list of options. You must change several of them:
     • CPU_ONLY: If you only want to use the CPU, ON. For GPU, leave it OFF.
     • CUDA_ARCH_NAME: Set to Auto or specify your GPU's architecture (e.g., Pascal, Turing, Ampere).
     • CMAKE_INSTALL_PREFIX: Set this to your caffe folder. This is important.
     • PYTHON_EXECUTABLE: Browse to your Python executable inside the Anaconda environment (e.g., C:\...\Anaconda3\envs\caffe_env\python.exe).
     • PYTHON_INCLUDE_DIR: Browse to the include folder in your Anaconda environment (e.g., C:\...\Anaconda3\envs\caffe_env\include).
     • PYTHON_LIBRARY: Browse to the libs folder in your Anaconda environment (e.g., C:\...\Anaconda3\envs\caffe_env\libs\python38.lib).
     • PYTHON_NUMPY_INCLUDE_DIR: Browse to the NumPy include folder (e.g., C:\...\Anaconda3\envs\caffe_env\Lib\site-packages\numpy\core\include).

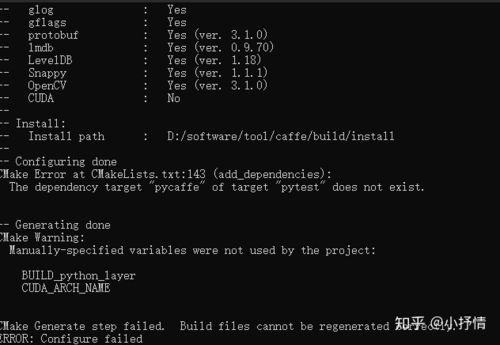

   • Click "Configure" again. If there are no red errors, click "Generate".

6. Build Caffe:

   • Open the generated solution file in the caffe\build folder (e.g., caffe.sln) using Visual Studio.
   • In the "Solution Platforms" dropdown, select x64.
   • Right-click on the ALL_BUILD project in the Solution Explorer and select Build. This will take a long time.

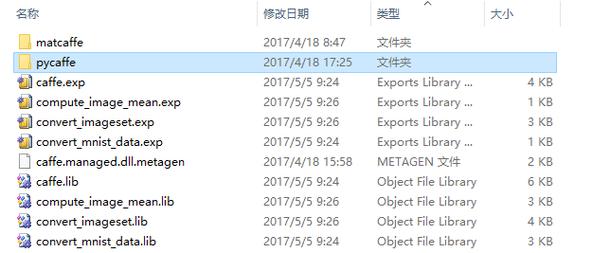

   • Once ALL_BUILD is successful, right-click on the INSTALL project and select Build. This will copy the necessary files to the caffe root directory.

7. Verify the Installation:

   • Open a new Anaconda Prompt and activate your caffe_env.

   • Navigate to the caffe root directory.

   • Run the Python test:

     # First, add caffe to your Python path for this session
     set PYTHONPATH=%cd%\python;%PYTHONPATH%
     # Run the test
     python -c "import caffe; print('Caffe imported successfully!')"

   • If you see the success message, you're done! You can now run your Python scripts by first setting the PYTHONPATH variable.

Summary & Recommendation

For anyone starting with Caffe on Windows, start with Docker. It will save you an immense amount of time and frustration. Only attempt the native installation if you are a seasoned developer and understand the risks and complexities involved.
