What is the Mandelbrot Set?

The Mandelbrot set is a famous fractal, a shape that exhibits self-similarity at all scales. It's defined as the set of complex numbers c for which the following sequence does not diverge to infinity:

1. Start with z₀ = 0.
2. Iterate the formula: z_{n+1} = z_n² + c.
3. If the magnitude of z (i.e., |z|) remains bounded (less than 2) after many iterations, the number c is in the Mandelbrot set.

To visualize it, we map a region of the complex plane (e.g., from -2 to 1 on the real axis and -1 to 1 on the imaginary axis) to a grid of pixels. For each pixel, we treat its coordinates as a complex number c and run the iteration test. The number of iterations it takes for |z| to exceed 2 determines the pixel's color.

Method 1: The Simple, Pure Python Approach

This version is great for understanding the core logic. It's easy to read but can be slow for high-resolution images.

The Code

import matplotlib.pyplot as plt
def mandelbrot_simple(width, height, max_iterations):
    """
    Generates the Mandelbrot set using a simple, pure Python approach.
    """
    # Create a 2D array to store the number of iterations for each pixel
    iterations_grid = [[0 for _ in range(width)] for _ in range(height)]
    # Define the bounds of the complex plane we want to visualize
    # The Mandelbrot set is roughly centered at (-0.5, 0) in the complex plane
    x_min, x_max = -2.0, 1.0
    y_min, y_max = -1.0, 1.0
    for row in range(height):
        for col in range(width):
            # Map the pixel coordinates to a complex number c
            x0 = x_min + (col / width) * (x_max - x_min)
            y0 = y_min + (row / height) * (y_max - y_min)
            c = complex(x0, y0)
            # Iterate the Mandelbrot formula
            z = 0j
            iteration = 0
            # We check if |z| is less than 2, which is equivalent to |z|^2 < 4
            while (z.real * z.real + z.imag * z.imag) <= 4 and iteration < max_iterations:
                z = z * z + c
                iteration += 1
            iterations_grid[row][col] = iteration
    return iterations_grid
# --- Main execution ---
if __name__ == "__main__":
    IMG_WIDTH = 800
    IMG_HEIGHT = 600
    MAX_ITERATIONS = 100
    print("Calculating Mandelbrot set...")
    grid = mandelbrot_simple(IMG_WIDTH, IMG_HEIGHT, MAX_ITERATIONS)
    # Create a plot
    plt.figure(figsize=(10, 7.5))
    plt.imshow(grid, extent=[-2.0, 1.0, -1.0, 1.0], cmap='hot', origin='lower')
    plt.colorbar(label='Iterations until divergence')
    plt.title("Mandelbrot Set (Simple Python)")
    plt.xlabel("Real axis")
    plt.ylabel("Imaginary axis")
    plt.show()

How to Run It

1. Make sure you have matplotlib installed: pip install matplotlib
2. Save the code as a Python file (e.g., mandelbrot_simple.py).
3. Run it from your terminal: python mandelbrot_simple.py

Explanation

1. mandelbrot_simple function:


   （图片来源网络，侵删）
   • It takes width, height, and max_iterations as input.
   • It initializes a 2D list iterations_grid to store the result for each pixel.
   • It loops through every pixel (row, col).
   • Mapping to Complex Plane: It maps the pixel's integer coordinates to a floating-point coordinate (x0, y0) within our desired bounds (x_min to x_max, y_min to y_max). This (x0, y0) becomes our complex number c.
   • Iteration Loop: It initializes z = 0 and then repeatedly applies the formula z = z*z + c. It stops if |z| exceeds 2 or if it reaches max_iterations.
   • Store Result: The final iteration count is stored in iterations_grid.

2. Main Block:

   • Sets the desired image dimensions and maximum iterations.
   • Calls the function to generate the data.

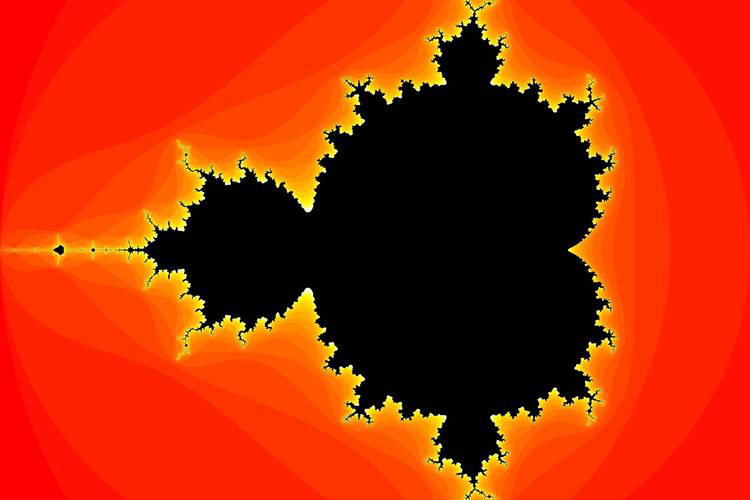

   • Plotting: matplotlib.pyplot.imshow() is used to create the image. It takes our 2D list and assigns colors based on the values. cmap='hot' gives a classic "hot" color map (black -> red -> yellow -> white). extent tells imshow the real-world coordinates of the image.

Method 2: The Optimized NumPy Approach

This version is significantly faster because it uses NumPy's vectorized operations to perform calculations on the entire grid at once, avoiding slow Python loops.

The Code

import numpy as np
import matplotlib.pyplot as plt
def mandelbrot_numpy(width, height, max_iterations):
    """
    Generates the Mandelbrot set using NumPy for fast vectorized operations.
    """
    # Create a 2D array of complex numbers representing the c values for each pixel
    x_min, x_max = -2.0, 1.0
    y_min, y_max = -1.0, 1.0
    x = np.linspace(x_min, x_max, width)
    y = np.linspace(y_min, y_max, height)
    # Create a meshgrid, which is a grid of coordinate points
    X, Y = np.meshgrid(x, y)
    # Combine the real and imaginary parts into a single complex array C
    C = X + 1j * Y
    # Create a copy of C to use as Z (the initial value of Z is 0)
    Z = np.zeros_like(C)
    # Create an array to store the iteration counts
    iterations = np.zeros(C.shape, dtype=int)
    # Create a mask for points that haven't diverged yet
    # We start by assuming no points have diverged
    not_diverged = np.ones(C.shape, dtype=bool)
    for i in range(max_iterations):
        # Only update Z for the points that haven't diverged yet
        Z[not_diverged] = Z[not_diverged]**2 + C[not_diverged]
        # Check for divergence: |Z|^2 > 4
        # The new mask is the intersection of the old mask and the non-diverged condition
        not_diverged = not_diverged & (np.abs(Z) <= 4)
        # Increment the iteration count for points that are still in the set
        iterations[not_diverged] += 1
    return iterations
# --- Main execution ---
if __name__ == "__main__":
    IMG_WIDTH = 800
    IMG_HEIGHT = 600
    MAX_ITERATIONS = 100
    print("Calculating Mandelbrot set with NumPy...")
    grid = mandelbrot_numpy(IMG_WIDTH, IMG_HEIGHT, MAX_ITERATIONS)
    # Create a plot
    plt.figure(figsize=(10, 7.5))
    plt.imshow(grid, extent=[-2.0, 1.0, -1.0, 1.0], cmap='hot', origin='lower')
    plt.colorbar(label='Iterations until divergence')
    plt.title("Mandelbrot Set (NumPy)")
    plt.xlabel("Real axis")
    plt.ylabel("Imaginary axis")
    plt.show()

Explanation of Differences

1. Vectorization: Instead of looping through pixels, we create a grid of complex numbers C using np.linspace and np.meshgrid. This single array C holds all the c values for our image.
2. Boolean Masking: The key to the optimization is the not_diverged boolean array. This array acts as a mask. In each iteration, we only perform calculations (Z = Z**2 + C) on the elements of Z and C where not_diverged is True.
3. Efficiency: NumPy performs these array operations in highly optimized, pre-compiled C code, which is orders of magnitude faster than a Python for loop. This makes the NumPy version capable of handling much higher resolutions and more iterations in a reasonable time.

Going Further: Adding Color and Zooming

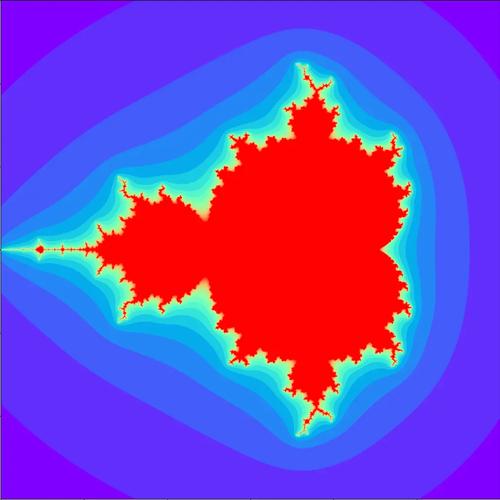

The hot colormap is simple. For more beautiful images, we can create a custom colormap that maps the iteration count to a smooth color gradient.

Smooth Coloring

The simple method gives a "banding" effect. We can use a continuous coloring algorithm for a smoother look. A common technique is to use the fractional part of the iteration count.

import numpy as np
import matplotlib.pyplot as plt
from matplotlib.colors import LinearSegmentedColormap
def mandelbrot_smooth(width, height, max_iterations):
    # ... (same setup as the NumPy version) ...
    x_min, x_max = -2.0, 1.0
    y_min, y_max = -1.0, 1.0
    x = np.linspace(x_min, x_max, width)
    y = np.linspace(y_min, y_max, height)
    X, Y = np.meshgrid(x, y)
    C = X + 1j * Y
    Z = np.zeros_like(C)
    iterations = np.zeros(C.shape, dtype=int)
    not_diverged = np.ones(C.shape, dtype=bool)
    for i in range(max_iterations):
        Z[not_diverged] = Z[not_diverged]**2 + C[not_diverged]
        # Check for divergence: |Z|^2 > 4
        diverged_now = (np.abs(Z) > 4) & not_diverged
        iterations[diverged_now] = i + 1 # Points that diverged in this step
        not_diverged = not_diverged & (np.abs(Z) <= 4)
    # --- Smooth coloring ---
    # For points that did not diverge, set their iteration count to max_iterations
    iterations[not_diverged] = max_iterations
    # Calculate the smoothed value
    # The formula is: nu = n + 1 - log(log(|z_n|)) / log(2)
    # We add a small epsilon to avoid log(0)
    log_zn = np.log(np.abs(Z) + 1e-10)
    nu = np.log(log_zn / np.log(2)) / np.log(2)
    smooth_iterations = iterations + 1 - nu
    # Cap the values at max_iterations
    smooth_iterations[iterations == max_iterations] = max_iterations
    return smooth_iterations
# --- Custom Colormap ---
colors = [(0, 0, 0.5), (0, 0, 1), (0, 0.5, 1), (0, 1, 1), (0.5, 1, 0.5), (1, 1, 0), (1, 0.5, 0), (1, 0, 0), (0.5, 0, 0)]
cmap_name = 'mandelbrot_colormap'
cm = LinearSegmentedColormap.from_list(cmap_name, colors, N=256)
# --- Main execution ---
if __name__ == "__main__":
    IMG_WIDTH = 1200
    IMG_HEIGHT = 800
    MAX_ITERATIONS = 256 # Higher iterations for smoother coloring
    print("Calculating smooth Mandelbrot set...")
    grid = mandelbrot_smooth(IMG_WIDTH, IMG_HEIGHT, MAX_ITERATIONS)
    plt.figure(figsize=(12, 9))
    plt.imshow(grid, extent=[-2.0, 1.0, -1.0, 1.0], cmap=cm, origin='lower', interpolation='bilinear')
    plt.colorbar(label='Smoothed Iterations')
    plt.title("Smooth Mandelbrot Set with Custom Colormap")
    plt.xlabel("Real axis")
    plt.ylabel("Imaginary axis")
    plt.show()

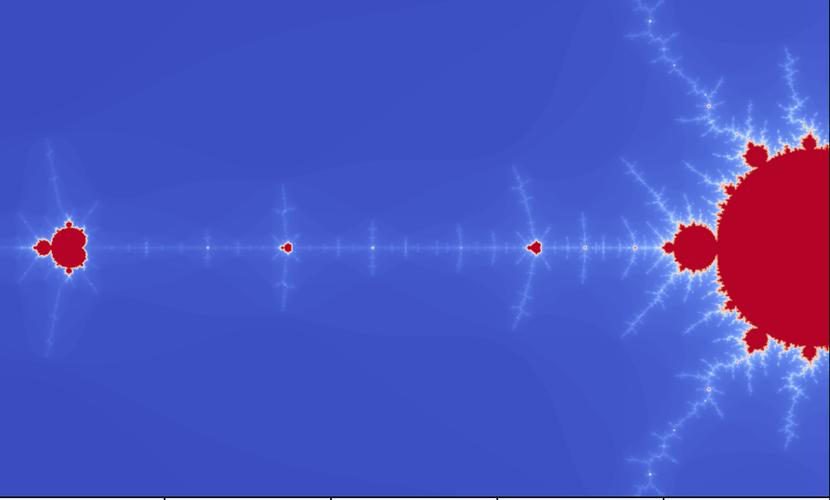

Zooming In

To zoom in, you just need to change the x_min, x_max, y_min, and y_max values. For example, to zoom into the "seahorse valley":

# In the main execution block, replace the extent and x/y min/max with:
x_min, x_max = -0.75, -0.74
y_min, y_max = 0.1, 0.11
# And adjust the plot extent accordingly:
# plt.imshow(..., extent=[x_min, x_max, y_min, y_max], ...)

This will create a new image focused on that specific region of the fractal, revealing infinite detail.
