Of course! This is a fantastic and highly valuable skill in the field of computational mechanics. Using Python to interact with Abaqus/CAE is the key to automating repetitive tasks, performing complex parametric studies, and creating custom analysis workflows.

Let's break this down into the two main ways you can use Python with Abaqus:

1. Python Scripting inside Abaqus/CAE: For creating and modifying models through the graphical user interface (GUI).
2. *Python Scripting outside* Abaqus/CAE (Standalone Scripts): For running simulations, extracting results, and post-processing without ever opening the GUI.

We'll cover both, starting with the most common use case.

Python Scripting Inside Abaqus/CAE (The abaqus Python Environment)

This is the foundation. When you open Abaqus/CAE, you are in a specialized Python interpreter that has access to the Abaqus object model. You can run commands directly in the Command Bar or write more complex scripts in the Python Editor.

Key Concepts:

• The Abaqus Object Model: The entire Abaqus/CAE interface (Part, Material, Section, Step, Load, etc.) is represented as a hierarchy of Python objects. You manipulate these objects to build your model.
• The mdb (Model Database): This is the top-level object. It represents your entire .cae file. You create new models from it (mdb.Model('MyModel')).
• The odb (Output Database): This object represents your results file (.odb). You use it to read data like stress, displacement, etc.

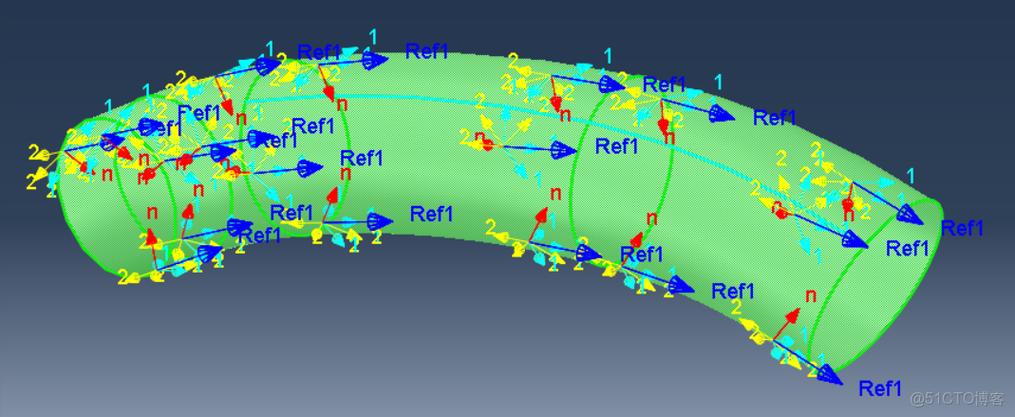

Simple Example: Creating a Basic Model in the Python Editor

Let's build a simple 2D plate with a hole, apply a pressure, and mesh it.

Steps:

1. Open Abaqus/CAE.
2. Go to File > Run Script... and create a new Python script.
3. Paste the following code into the editor and run it.

# ==========================================================================================
# Abaqus/CAE Python Script: Create a simple 2D plate with a hole
# ==========================================================================================

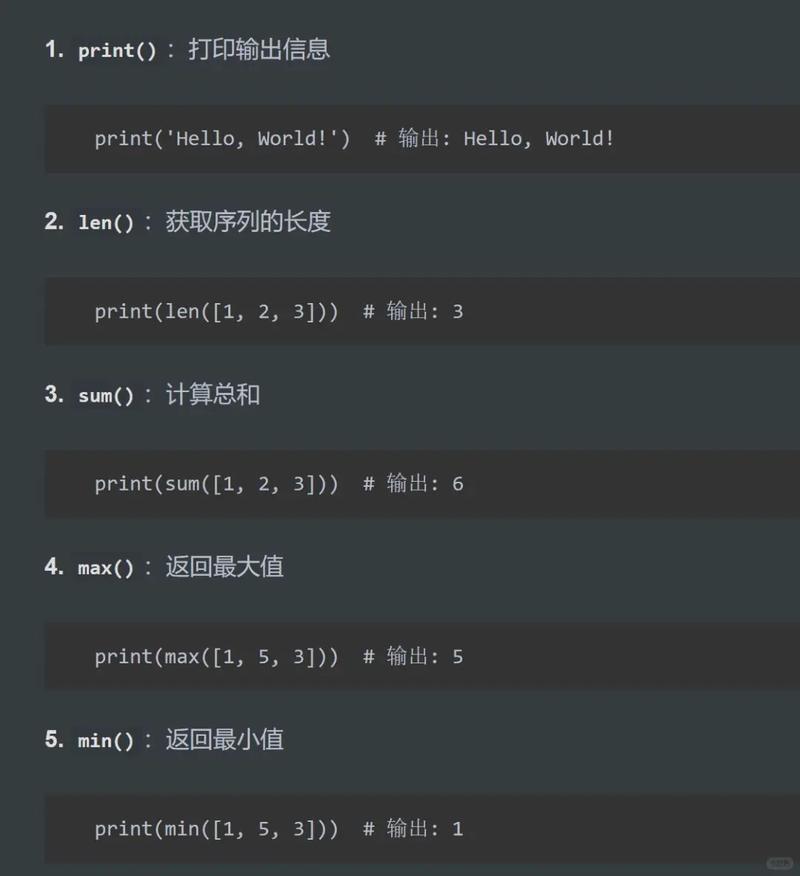

from abaqus import *
from abaqusConstants import *
from caeModules import *
# --- 1. MODEL ---
# Create a new model in the model database
model = mdb.Model(name='PlateWithHole', modelType=ANALYSIS)
# --- 2. PART ---
# Create a 2D deformable shell planar part
# The sketch is defined by a list of (x,y) tuples
s = model.ConstrainedSketch(name='sketch_plate', sheetSize=200.0)
s.rectangle(point1=(-100, -50), point2=(100, 50))
# Create a circle for the hole
s.CircleByCenterPerimeter(center=(0, 0), pointOnPerimeter=(30, 0))
# Create the part from the sketch
# The first argument is the vertices to keep. We want the outer rectangle.
# The second is the vertices to remove. We want the circle.
model.Part(name='Part-1', dimensionality=TWO_D_PLANAR, type=DEFORMABLE_SHELL,
           sketch=s, mergeType=MERGE_EDGES)
# --- 3. MATERIALS AND SECTIONS ---
# Create a material
model.Material(name='Steel')
model.Materials['Steel'].Elastic(table=(200000.0, 0.3)) # Young's Modulus, Poisson's Ratio
# Create a homogeneous shell section and assign it to the part
model.HomogeneousShellSection(name='Shell-1', material='Steel', thickness=10.0)
model.parts['Part-1'].SectionAssignment(region=model.parts['Part-1'].faces, sectionName='Shell-1')
# --- 4. ASSEMBLY ---
# Create an instance of the part in the assembly
model.rootAssembly.Instance(name='Part-1-1', part= model.parts['Part-1'], dependent=ON)
# --- 5. STEPS ---
# Create a static, general step
model.Step(name='Step-1', previous='Initial', procedure=STATIC_GENERAL, timePeriod=1.0)
# --- 6. LOADS AND BOUNDARY CONDITIONS ---
# Create a pressure load on the right edge
# First, find the right edge using a set
right_edge = model.rootAssembly.instances['Part-1-1'].edges.findAt((100, 0, 0))
model.rootAssembly.Set(name='Set-Right', edges=right_edge)
model.Pressure(name='Pressure-1', createStepName='Step-1', region=model.rootAssembly.sets['Set-Right'],
               magnitude=100.0)
# Create a boundary condition to fix the left edge
# First, find the left edge
left_edge = model.rootAssembly.instances['Part-1-1'].edges.findAt((-100, 0, 0))
model.rootAssembly.Set(name='Set-Left', edges=left_edge)
model.EncastreBC(name='BC-Fixed', createStepName='Step-1', region=model.rootAssembly.sets['Set-Left'])
# --- 7. MESHING ---
# Assign a global seed size to the edges
model.rootAssembly.instances['Part-1-1'].edges.set(edgeSets=(model.rootAssembly.instances['Part-1-1'].edges,), size=10.0)
# Create a structured quad mesh
model.rootAssembly.instances['Part-1-1'].seedPartInstance(regions=(model.rootAssembly.instances['Part-1-1'].faces,))
model.rootAssembly.instances['Part-1-1'].generateMesh()
# --- 8. JOB ---
# Create and submit the analysis job
job = mdb.Job(name='PlateJob', model='PlateWithHole')
job.submit(consistencyChecking=OFF)
job.waitForCompletion()
print("Script finished successfully!")

How to Run This Script:

1. Open Abaqus/CAE.
2. Go to File > Run Script....
3. A Python editor window will open. Paste the code in.
4. Click the "Run" button (the green play icon).

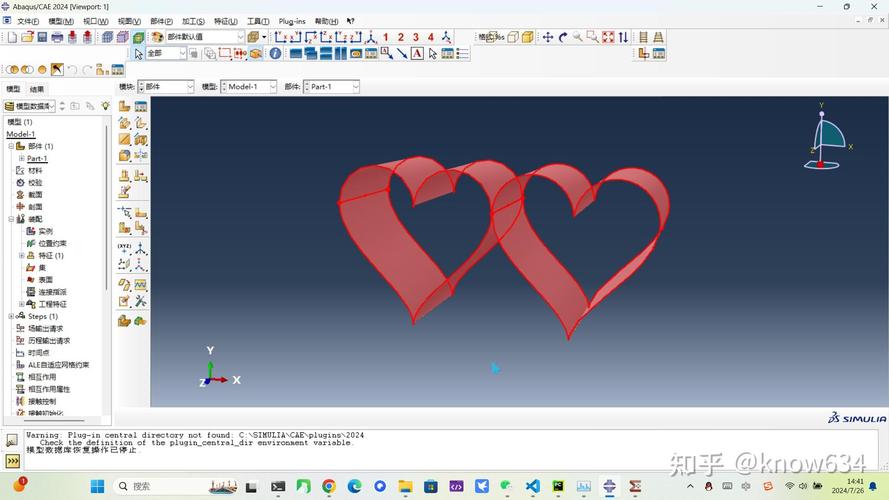

You will see the model being constructed in real-time in the viewport. After it finishes, you can go to the Job module and "Monitor" the PlateJob to see it run.

Python Scripting Outside Abaqus/CAE (Standalone Scripts)

This is for automation. You can run these scripts from your operating system's command line without ever opening the Abaqus GUI. This is perfect for parametric studies.

Key Concepts:

• The abaqus Command: The executable that runs Abaqus from the command line.
• cae vs. standard vs. explicit: You specify which solver to use.
  • abaqus cae script=...: Opens the CAE environment and runs the script (useful for complex model building).
  • abaqus job=JobName script=...: Submits a job to the solver using a Python script. The script must contain a mdb.Job(...) object.
  • abaqus standard job=JobName: Runs a previously created .inp file.
• No mdb or odb Access: In a standalone script run with abaqus job=..., you cannot build a model (mdb is not available). You can only submit a job that was defined in a .inp file or created by a previous cae script.

Example 1: Submitting a Job from the Command Line

Let's say you have a file named my_model.inp. You can run it from your terminal:

Windows (Command Prompt or PowerShell):

abaqus job=my_model standard

This will create my_model.log, my_model.dat, and my_model.odb files in the same directory.

Example 2: A Parametric Study using a Python Script

This is the most powerful application. You want to run the same model 10 times with different hole radii.

Workflow:

1. Create a Template .inp file: Create a basic Abaqus input file (template.inp) with a placeholder for the hole radius.
2. Create a Python Script: This script will read the template, replace the placeholder, and submit a new job for each value.

Step 1: template.inp (Simplified) Notice the *PARAMETER block and the use of a variable HOLE_RADIUS.

** Abaqus/Standard Input File
** Written by: Parametric Script
*PARAMETER
HOLE_RADIUS = 30.0, 1.0
** PART
*PART, NAME=PART-1
...
** Sketch for the plate
*SKETCH, NAME=SKETCH-1
...
** Outer rectangle
1, 0., -50., 0.
2, 100., -50., 0.
3, 100., 50., 0.
4, -100., 50., 0.
5, -100., -50., 0.
...
** Hole circle (Using the parameter!)
*CIRCLE, X=0., Y=0., RADIUS=&HOLE_RADIUS
...
...
** ASSEMBLY
*INSTANCE, NAME=PART-1-1, PART=PART-1
...
** MESH
...
** JOB
*JOB, NAME=PLATE_JOB, ANALYSIS=STATIC
...

Step 2: run_parametric_study.py

import os
import shutil
# --- Configuration ---
input_file_template = 'template.inp'
job_name_template = 'PlateJob_Radius_{}'
radii_to_study = [20.0, 25.0, 30.0, 35.0, 40.0] # List of hole radii to test
output_directory = 'parametric_results'
# --- Main Script ---
# Create a directory to store results if it doesn't exist
if not os.path.exists(output_directory):
    os.makedirs(output_directory)
print("Starting parametric study...")
for radius in radii_to_study:
    print(f"\n--- Processing for radius: {radius} ---")
    # 1. Define the new file names
    current_job_name = job_name_template.format(int(radius))
    current_inp_file = f"{current_job_name}.inp"
    # 2. Copy the template file to a new file for this specific run
    shutil.copy(input_file_template, current_inp_file)
    # 3. Read the file, replace the placeholder, and write it back
    with open(current_inp_file, 'r') as f:
        content = f.read()
    # Replace the placeholder value
    # This is a simple string replacement. For complex cases, regex is better.
    content = content.replace("HOLE_RADIUS = 30.0, 1.0", f"HOLE_RADIUS = {radius}, 1.0")
    with open(current_inp_file, 'w') as f:
        f.write(content)
    print(f"Created input file: {current_inp_file}")
    # 4. Submit the Abaqus job from the command line
    # The '!' operator executes a shell command
    # 'nohup' and '&' are for running in the background (Linux/macOS)
    # On Windows, you might use 'start /b'
    command = f"abaqus job={current_job_name} standard interactive"
    print(f"Executing command: {command}")
    os.system(command)
    # 5. Move the output files to the results directory
    files_to_move = [f"{current_job_name}.log", f"{current_job_name}.dat", f"{current_job_name}.odb"]
    for file in files_to_move:
        if os.path.exists(file):
            shutil.move(file, os.path.join(output_directory, file))
print("\nParametric study complete.")

How to Run This Script:

1. Place template.inp and run_parametric_study.py in the same directory.
2. Open a terminal/command prompt in that directory.
3. Run the script: python run_parametric_study.py
4. Abaqus will launch in the background for each radius, and all the output files will be collected in the parametric_results folder.

Essential Resources for Learning

1. Abaqus Documentation (The Bible):

   • Go to Help > Abaqus Scripting Reference Manual. This is the definitive guide to every object, method, and function in the Abaqus object model. It's searchable and has examples.
   • Help > Abaqus Analysis User's Manual is also crucial for understanding the keywords (like *MATERIAL, *STEP) that you might see in .inp files.

2. Record a Macro: This is the best way to learn. In Abaqus/CAE, go to Macro > Record Macro.... Perform a task (like creating a part and a material), then stop the recording. Go to Macro > Edit Macro... to see the Python code that Abaqus generated for your actions. You can learn the syntax and object names directly from this.

3. Online Communities:

   • Eng-Tips Forum: Excellent for specific, technical questions.
   • ResearchGate: Look for papers that mention "Abaqus Python scripting" or "parametric FEA" in their methods section. Authors often share their scripts.

By mastering these techniques, you can move from a simple GUI user to a power user who can automate and customize simulations to a degree that is impossible with manual clicks alone.
