Of course! Here is a comprehensive guide to using WebSphere MQ (now known as IBM MQ) with Java. This guide covers the fundamental concepts, required libraries, connection setup, code examples for common messaging patterns, and best practices.

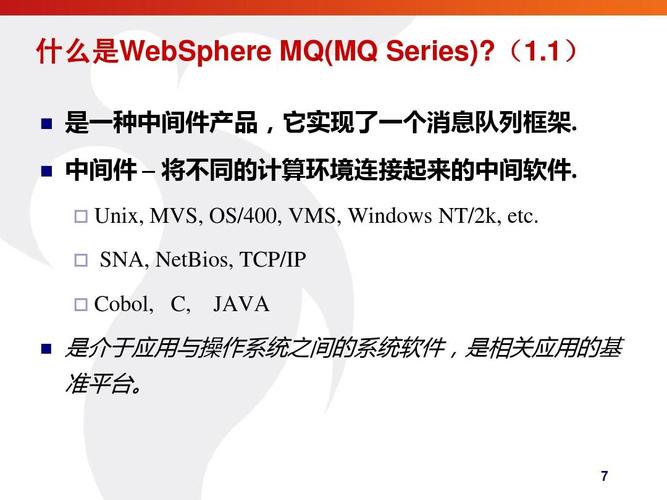

What is IBM MQ?

IBM MQ is a robust, enterprise-grade Message-Oriented Middleware (MOM). Its primary job is to enable different applications to communicate with each other, even if they are written in different languages, run on different operating systems, or are located on different networks.

Think of it as a postal service for your applications:

• Applications are the senders and receivers.
• MQ is the post office that reliably delivers the "letters" (messages).

Key Concepts

• Queue Manager (QM): The heart of an MQ installation. It manages all the queues and handles message routing for a specific node. It's like a post office branch.
• Queue: A named destination where messages are stored. There are two main types:
  • Local Queue (QL): A queue that physically resides on the queue manager where the application is connected.
  • Remote Queue (QR): A logical definition of a queue that exists on another queue manager.
• Channel: A communication link between two queue managers. It's like the mail truck or delivery route that transports messages between post offices.
• Message Descriptor (MD): A header that accompanies every message, containing metadata like the message type, priority, and timestamp.
• Client-Connection: A lightweight way for an application to connect to a remote queue manager without having the full MQ server software installed on the client machine. This is the most common setup for Java applications.

Prerequisites & Setup

a) IBM MQ Server Installation

You need an MQ server running somewhere. For development, you can install it on your local machine or a VM. During installation, you will create a Queue Manager and define a Local Queue.

For example, using the runmqsc command:

# Start the queue manager
strmqm QM1
# Open the command console
runmqsc QM1
# Define a local queue named 'JAVA.QUEUE'
define ql(JAVA.QUEUE)
# Exit the console
end

b) Java Development Environment

You need a Java Development Kit (JDK) and an IDE (like IntelliJ, Eclipse, or VS Code).

c) IBM MQ Java Client Libraries

You need the IBM MQ Java libraries in your project. The modern way to manage this is with a build tool like Maven or Gradle.

Maven (pom.xml): Add the following dependency. This single artifact includes the core JMS classes and the MQ-specific bindings.

<dependency>
    <groupId>com.ibm.mq</groupId>
    <artifactId>com.ibm.mq.allclient</artifactId>
    <version>9.3.x.x</version> <!-- Use the latest version available -->
</dependency>

Note: com.ibm.mq.allclient is a convenient bundle. For production, you might want a more specific version for better dependency management.

（图片来源网络，侵删）

Connection Setup (The JMSAdmin way)

Before writing Java code, you need to configure the connection details. The standard way to do this in IBM MQ is with a bindings file or a client connection channel (CCD) file.

For a Local Connection (bindings mode):

The application runs on the same machine as the queue manager. MQ uses native OS calls for communication. No special file is needed, but it's less common for modern Java apps.

For a Remote Connection (client mode):

This is the most common scenario. The Java application connects to a queue manager on another server. You need to create a Queue Connection Channel Definition (CCD) file.

1. On your MQ Server, find the qm.ini file for your queue manager (e.g., /var/mqm/qm/QM1/qm.ini).

2. Create a new file named AMQCLCHL.TAB in the same directory.

3. Add the channel definition to this file. For example, to define a server-connection channel named DEV.APP.SVRCONN:

   # AMQCLCHL.TAB
   DEV.APP.SVRCONN   TCP(DEVQM1)    TRPTYPE(TCP)    KEEPALIVE(60)

   • DEV.APP.SVRCONN: The name of the channel.
   • TCP(DEVQM1): The hostname or IP address of your MQ server.
   • TRPTYPE(TCP): The transport type.
   • KEEPALIVE: How often to check if the connection is alive.

4. Crucially, ensure this channel is started on the MQ server using runmqsc:

   runmqsc QM1
   start chl(DEV.APP.SVRCONN)
   end

Java Code Examples

The standard API for messaging in Java is the Java Message Service (JMS). IBM MQ provides a JMS implementation. JMS has two main messaging models:

1. Point-to-Point (P2P): Uses Queues. A producer sends a message to a specific queue, and one consumer receives it.
2. Publish/Subscribe (Pub/Sub): Uses Topics. A producer publishes a message to a topic, and multiple subscribers can receive it.

We'll focus on the more common P2P model with Queues.

A. Putting a Message (Producer)

This code connects to MQ and sends a simple text message to a queue.

import com.ibm.mq.MQEnvironment;
import com.ibm.mq.MQException;
import com.ibm.mq.MQMessage;
import com.ibm.mq.MQQueue;
import com.ibm.mq.MQQueueManager;
import com.ibm.mq.constants.MQConstants;
public class MqProducer {
    private static final String QUEUE_MANAGER = "QM1";
    private static final String HOST_NAME = "your.mq.server.com"; // Or IP
    private static final String CHANNEL = "DEV.APP.SVRCONN";
    private static final int PORT = 1414;
    private static final String QUEUE_NAME = "JAVA.QUEUE";
    public static void main(String[] args) {
        // 1. Set up the MQ environment (for client connection)
        MQEnvironment.hostname = HOST_NAME;
        MQEnvironment.channel = CHANNEL;
        MQEnvironment.port = PORT;
        // Optional: Set user ID and password if security is enabled
        // MQEnvironment.userID = "mqm";
        // MQEnvironment.password = "password";
        MQQueueManager qManager = null;
        MQQueue queue = null;
        try {
            // 2. Connect to the Queue Manager
            System.out.println("Connecting to Queue Manager: " + QUEUE_MANAGER);
            qManager = new MQQueueManager(QUEUE_MANAGER);
            System.out.println("Connection successful.");
            // 3. Open the queue for putting messages
            // Options: MQConstants.MQOO_OUTPUT | MQConstants.MQOO_FAIL_IF_QUIESCING
            int openOptions = MQConstants.MQOO_OUTPUT | MQConstants.MQOO_FAIL_IF_QUIESCING;
            queue = qManager.accessQueue(QUEUE_NAME, openOptions);
            System.out.println("Queue '" + QUEUE_NAME + "' opened for output.");
            // 4. Create a message and put it on the queue
            MQMessage message = new MQMessage();
            message.writeString("Hello from Java MQ Producer!");
            System.out.println("Putting message on the queue...");
            queue.put(message);
            System.out.println("Message put successfully.");
        } catch (MQException e) {
            System.err.println("An MQ error occurred: " + e.reasonCode);
            e.printStackTrace();
        } catch (Exception e) {
            System.err.println("An error occurred: " + e.getMessage());
            e.printStackTrace();
        } finally {
            // 5. Clean up resources
            try {
                if (queue != null) {
                    queue.close();
                    System.out.println("Queue closed.");
                }
                if (qManager != null) {
                    qManager.disconnect();
                    System.out.println("Disconnected from Queue Manager.");
                }
            } catch (MQException e) {
                System.err.println("Error during cleanup: " + e.reasonCode);
            }
        }
    }
}

B. Getting a Message (Consumer)

This code connects to MQ and waits to receive a message from a queue.

import com.ibm.mq.MQEnvironment;
import com.ibm.mq.MQException;
import com.ibm.mq.MQMessage;
import com.ibm.mq.MQQueue;
import com.ibm.mq.MQQueueManager;
import com.ibm.mq.constants.MQConstants;
public class MqConsumer {
    private static final String QUEUE_MANAGER = "QM1";
    private static final String HOST_NAME = "your.mq.server.com";
    private static final String CHANNEL = "DEV.APP.SVRCONN";
    private static final int PORT = 1414;
    private static final String QUEUE_NAME = "JAVA.QUEUE";
    public static void main(String[] args) {
        // 1. Set up the MQ environment
        MQEnvironment.hostname = HOST_NAME;
        MQEnvironment.channel = CHANNEL;
        MQEnvironment.port = PORT;
        MQQueueManager qManager = null;
        MQQueue queue = null;
        try {
            // 2. Connect to the Queue Manager
            System.out.println("Connecting to Queue Manager: " + QUEUE_MANAGER);
            qManager = new MQQueueManager(QUEUE_MANAGER);
            System.out.println("Connection successful.");
            // 3. Open the queue for getting messages
            // Options: MQConstants.MQOO_INPUT_AS_Q_DEF | MQConstants.MQOO_FAIL_IF_QUIESCING
            int openOptions = MQConstants.MQOO_INPUT_AS_Q_DEF | MQConstants.MQOO_FAIL_IF_QUIESCING;
            queue = qManager.accessQueue(QUEUE_NAME, openOptions);
            System.out.println("Queue '" + QUEUE_NAME + "' opened for input.");
            // 4. Create a message buffer and get a message from the queue
            MQMessage message = new MQMessage();
            System.out.println("Waiting for a message...");
            queue.get(message); // This call will block until a message arrives
            // 5. Read the message content
            String messageText = message.readString(message.getMessageLength());
            System.out.println("Message received: " + messageText);
        } catch (MQException e) {
            // If the queue is empty, MQRC_NO_MSG_AVAILABLE is returned.
            if (e.reasonCode == MQConstants.MQRC_NO_MSG_AVAILABLE) {
                System.out.println("No messages available on the queue.");
            } else {
                System.err.println("An MQ error occurred: " + e.reasonCode);
                e.printStackTrace();
            }
        } catch (Exception e) {
            System.err.println("An error occurred: " + e.getMessage());
            e.printStackTrace();
        } finally {
            // 6. Clean up resources
            try {
                if (queue != null) {
                    queue.close();
                    System.out.println("Queue closed.");
                }
                if (qManager != null) {
                    qManager.disconnect();
                    System.out.println("Disconnected from Queue Manager.");
                }
            } catch (MQException e) {
                System.err.println("Error during cleanup: " + e.reasonCode);
            }
        }
    }
}

Best Practices & Advanced Topics

a) Connection Management

• Do NOT create a new MQQueueManager for every message. Creating a connection is an expensive operation.
• Use a connection pool. Reuse connections across your application. Libraries like Apache Commons Pool can be used to manage a pool of MQQueueManager instances.
• Handle MQException properly. Check the reasonCode to understand the failure (e.g., MQRC_NO_MSG_AVAILABLE, MQRC_Q_MGR_NOT_AVAILABLE).

b) Using JMS (The Standard API)

While the com.ibm.mq.* classes work directly, using the JMS API is highly recommended. It decouples your application from the specific MQ implementation, making it easier to switch providers if needed. The code looks different but follows the JMS standard (ConnectionFactory, Session, Queue, MessageProducer, MessageConsumer).

c) Message Types

The MQMessage object can hold different types of data:

• MQMessage: The base class. Use writeBytes()/readBytes() for binary data.
• MQBytesMessage: For binary data streams.
• MQTextMessage: For simple String-based messages (like in the examples above).
• MQMapMessage: For key-value pairs.
• MQStreamMessage: For a stream of primitive Java types.
• MQObjectMessage: For serialized Java objects (use with caution, as it ties your message to a specific class version).

d) Message Persistence and Delivery

• Persistent vs. Non-Persistent: When putting a message, you can set its persistence. Persistent messages are written to disk and survive queue manager restarts. Non-persistent messages are kept in memory and are faster but can be lost.

  message.messagePersistence = MQConstants.MQPER_PERSISTENT; // Or MQConstants.MQPER_NOT_PERSISTENT

• Delivery Modes: In JMS, this maps to DeliveryMode.PERSISTENT and DeliveryMode.NON_PERSISTENT.

e) Transactions

You can group multiple puts or gets into a single transaction. If any operation in the transaction fails, the entire transaction is rolled back. This is crucial for data integrity. This is managed via the MQGetMessageOptions and MQPutMessageOptions objects or through JMS transactions.
