Of course! Let's break down Java Spring MVC, from the core concepts to a practical example.

What is Spring MVC?

Spring MVC is a mature and powerful web framework built on the Spring Framework. It's designed to simplify the process of creating robust, scalable, and maintainable web applications following the Model-View-Controller (MVC) architectural pattern.

The primary goal of Spring MVC is to separate concerns in your application, making it easier to develop, test, and manage.

The Core MVC Pattern Explained

To understand Spring MVC, you first need to understand the MVC pattern it's built on.

1. Model: This is the heart of your application. It represents your data and business logic.


   （图片来源网络，侵删）
   • Data: Typically represented by Plain Old Java Objects (POJOs or JavaBeans). For example, a User class with id, name, and email fields.
   • Business Logic: The rules and operations that manipulate this data (e.g., validating a user, calculating a price). This is often handled by Service Layer classes.

2. View: This is what the user sees. It's responsible for presenting the data from the Model to the user.

   • In modern Spring applications, this is almost always a template (like Thymeleaf, FreeMarker, or JSP) that gets rendered into HTML.
   • It's a "dumb" component; it shouldn't contain any business logic.

3. Controller: This is the intermediary. It receives user input (from an HTTP request), interacts with the Model to process it, and then selects an appropriate View to render the response.

   • In Spring, controllers are typically POJOs annotated with @Controller.
   • They handle specific URLs (endpoints) and HTTP methods (GET, POST, etc.).

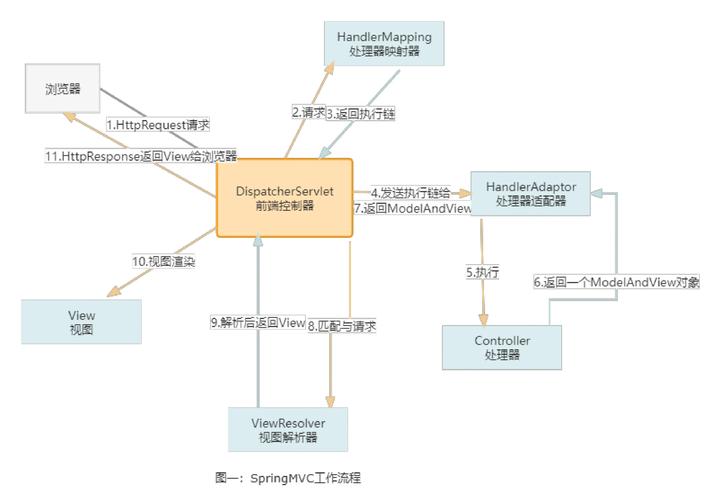

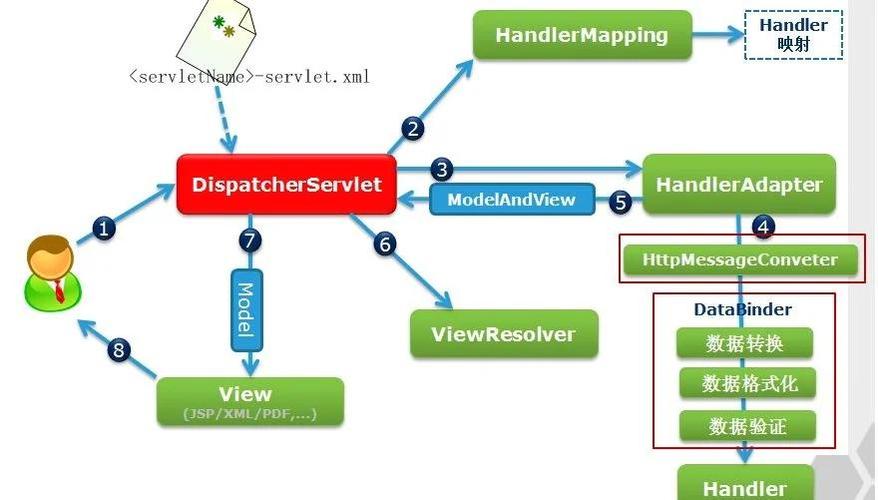

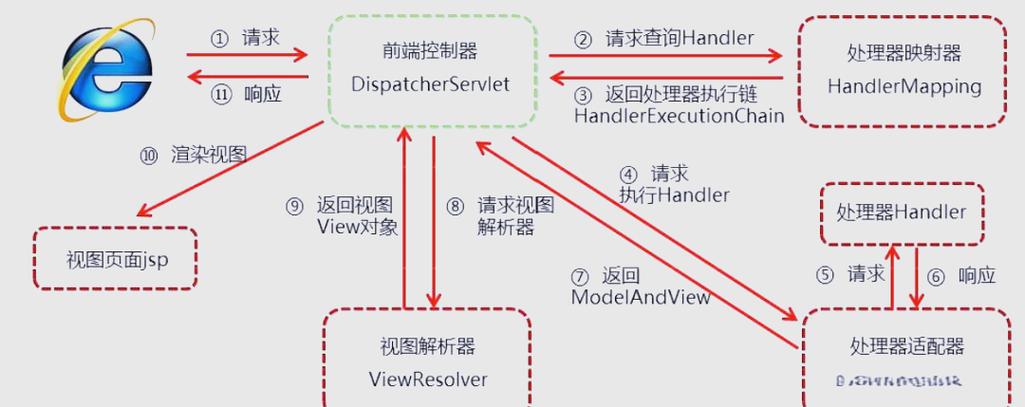

The Request Flow in Spring MVC

Here’s how these components work together when a user makes a request:

1. HTTP Request: A user clicks a link or submits a form, sending an HTTP request to the server (e.g., GET /users/123).
2. DispatcherServlet: This is the front controller of Spring MVC. It's the single entry point for all incoming web requests. It receives the request and doesn't handle it directly.
3. Handler Mapping: The DispatcherServlet asks a HandlerMapping component to find the right controller method to handle this request. The mapping is usually based on the URL and HTTP method.
4. Controller: The DispatcherServlet passes the request to the chosen controller method (e.g., a method in a UserController).
5. Model & Service: The controller method processes the request. It might:
   • Call a Service Layer method to perform business logic.
   • Fetch data from a Repository (which talks to a database).
   • Package the data into a Model object or a Map to be passed to the view.
6. ViewResolver: After the controller finishes, it returns the name of a view (e.g., "user-details"). The DispatcherServlet uses a ViewResolver to find the actual template file (e.g., user-details.html).
7. View: The DispatcherServlet passes the model data to the resolved view. The view template (e.g., Thymeleaf) renders the data into HTML.
8. HTTP Response: The final, rendered HTML is sent back to the user's browser as an HTTP response.

Key Spring MVC Annotations

You'll use these annotations constantly to build your application.

A Practical Step-by-Step Example

Let's create a simple "Hello World" web application using Spring Boot (which makes setting up Spring MVC incredibly easy).

Step 1: Project Setup (using Spring Initializr)

Go to start.spring.io and create a new project with:

• Project: Maven
• Language: Java
• Spring Boot: A recent stable version (e.g., 3.x.x)
• Project Metadata:
  • Group: com.example
  • Artifact: demo
  • Name: demo
  • Packaging: Jar
  • Java: 17 or higher
• Dependencies:
  • Spring Web: This is the essential dependency for building web applications with Spring MVC.
  • Thymeleaf (optional, for server-side rendering): If you want to return HTML pages.

Step 2: Create the Model

Create a simple POJO to represent our data. In src/main/java/com/example/demo/model/, create Message.java:

// src/main/java/com/example/demo/model/Message.java
package com.example.demo.model;
public class Message {
    private String text;
    public Message(String text) {
        this.text = text;
    }
    public String getText() {
        return text;
    }
    public void setText(String text) {
        this.text = text;
    }
}

Step 3: Create the Controller

This is where we define the URL endpoints and handle the requests. In src/main/java/com/example/demo/controller/, create HelloController.java:

// src/main/java/com/example/demo/controller/HelloController.java
package com.example.demo.controller;
import com.example.demo.model.Message;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model; // org.springframework.ui.Model, not ModelMap
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestParam;
@Controller
public class HelloController {
    // Handles GET requests to "/hello"
    @GetMapping("/hello")
    public String sayHello(@RequestParam(name = "name", required = false, defaultValue = "World") String name, Model model) {
        // 1. Create a message object
        Message message = new Message("Hello, " + name + "!");
        // 2. Add the message to the model. The key "message" will be used in the Thymeleaf template.
        model.addAttribute("message", message);
        // 3. Return the logical name of the view to be rendered.
        // Spring Boot's default ViewResolver will look for a template named "hello.html".
        return "hello";
    }
}

Step 4: Create the View

Now, let's create the HTML template that will display our message. Spring Boot with Thymeleaf automatically looks for templates in src/main/resources/templates/.

Create src/main/resources/templates/hello.html:

<!-- src/main/resources/templates/hello.html -->
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">Hello Page</title>
</head>
<body>
    <h1 th:text="${message.text}">Welcome to our website!</h1>
    <p>This message was generated by a Spring MVC controller.</p>
</body>
</html>

• The xmlns:th="http://www.thymeleaf.org" namespace allows us to use Thymeleaf's attributes.
• th:text="${message.text}" tells Thymeleaf to replace this tag's content with the value of the text property from the message object we added to the model in our controller.

Step 5: Run the Application

Run the DemoApplication.java main class. Your Spring Boot application will start, typically on port 8080.

Step 6: Test It

Open your web browser and navigate to: http://localhost:8080/hello?name=Spring

You should see the page:

Hello, Spring!

If you go to http://localhost:8080/hello, you'll see:

Hello, World!

Spring MVC vs. Spring Boot

It's crucial to understand the difference:

• Spring MVC: It's a web framework. It provides the building blocks (DispatcherServlet, controllers, views, etc.) to build a web application. You have to configure many things manually (like the DispatcherServlet in web.xml, view resolvers, etc.).

• Spring Boot: It's not a replacement for Spring MVC. Instead, it's an opinionated framework built on top of Spring. Its main goal is to simplify the setup and configuration of Spring applications.

  • Auto-Configuration: It automatically configures things like the DispatcherServlet and a ViewResolver for Thymeleaf based on the dependencies you have on your classpath.
  • Starter Dependencies: It provides convenient "starter" POMs (spring-boot-starter-web) that pull in all the necessary libraries with compatible versions.

In short: You use Spring MVC to build your web application's logic, and you use Spring Boot to make building and running that application incredibly easy.
